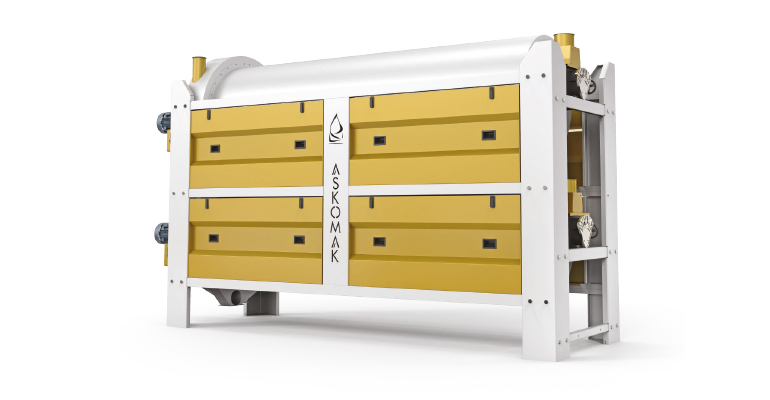

Trieur

It is designed to separate round and long foreign substances in the cereals. It separates seeds, barley, ryes, lentils, broken wheat, long grains, etc. from the wheat. Pockets pressed on liner sheet collect foreign substances and put them in the spiral basin. Outside the spiral basin, the cereals are blended with an ultra mixer, and the internal structure of long grain trieurs are comprised of a different system.

TYPE A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) CAPACITY (t/h) AIR m³/min MOTOR VOLUME (m³) WEIGHT (kg)
WHEAT ABSUK Kw Rpm
WHEAT ABSUK
ASK-TRY 63x200 3180 910 2425 2685 650 985 3-4 2.8 8 1.5 40 32 2.9 590
ASK-TRY 75x240 3585 1040 2835 3090 785 1255 5.5-6.5 4 8 2.2 40 32 5.9 780
ASK-TRY 90x240 3580 1150 3020 3090 1080 1600 8.5-9.5 5 9 2.2 40 32 6.0 870
ASK-TRY 90x300 4220 1200 3640 3730 945 1195 9.5-10.5 6 10 3 40 32 7.3 920
ASK-TRY 2x63x200 3180 910 2425 2685 650 2370 6-8 5.5 12 2x1.5 40 32 4.7 1060
ASK-TRY 2x75x240 3585  1040 2835 3090 785 2105  11-13 8 12 2x2.2 40 32 8.2 1200
ASK-TRY 2x90x240 3580 1150 3020 3090 1080 2800 17-19 10 13 2x2.2 40 32 8.9 1280
ASK-TRY 2x90x300 4220 1200 3640 3730 1110 2290 19-21  12  15 2x3.0 40 32 9.7 1350
ASK-TRY -AB-63x200 3180 910 2425 2685 650 985 3-4 2.8 8 1.5 40 32 2.9 640
ASK-TRY -AB-75x240  3585 1040 2835 3090 785 1255  5.5-6.5 4 8 2.2 40 32 6.0 750
ASK-TRY -AB-90x240 3580  1150 3020 3090 1080 1600 8.5-9.5  5 9 2.2 40 32 6.0 810
ASK-TRY -AB-90x300 4220 1200 3640 3730 945 1195 9.5-10.5 6 10 3 40 32 7.3 860
