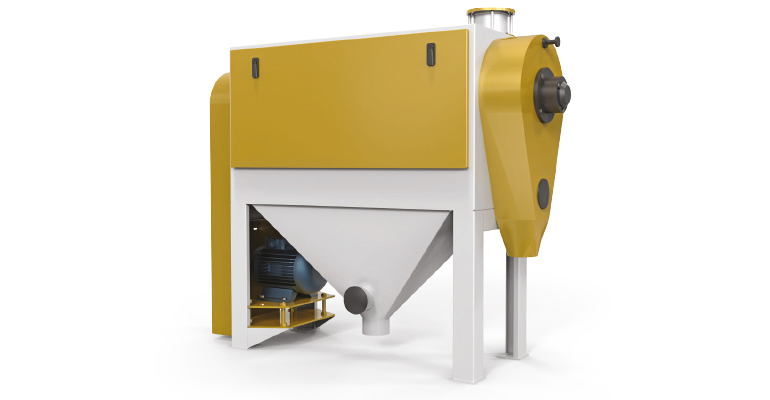

It has been designed to separate flour particles attached to and remaining within the bran at flour and semolina mills. Flour particles found inside the bran are separated to ensure high flour yield. Bran and flour particles entering the machine are spread and mixed to hit the corners of a perforated sheet with holes of different microns with the help of the fast rotating rotor. At this moment, the flour particles inside the bran are thrown out of the perforated sheet.
TYPE | TECHNICAL FEATURES | DIMENSIONS (mm) | WEIGHT CAPACITY (kg) | ||||||||||
CAPACITY (kg) (t/h) | POWER (kw) | RPM (d/dk) | AIR REQUIRED (m²/min) | A | B | C | D | E | ØX | ØY | ØZ | ||
ASK-VKF 560/1000 | 1400-2200 | 7-11 | 1500 | 1.5 | 1910 | 1250 | 635 | 1010 | 1440 | 120 | 115 | 145 | 375 |
ASK-VKF 560/1200 | 1900-3100 1 | 10.5-14 | 1500 | 1.5 | 2020 | 1375 | 725 | 1200 | 1780 | 130 | 130 | 150 | 425 |
